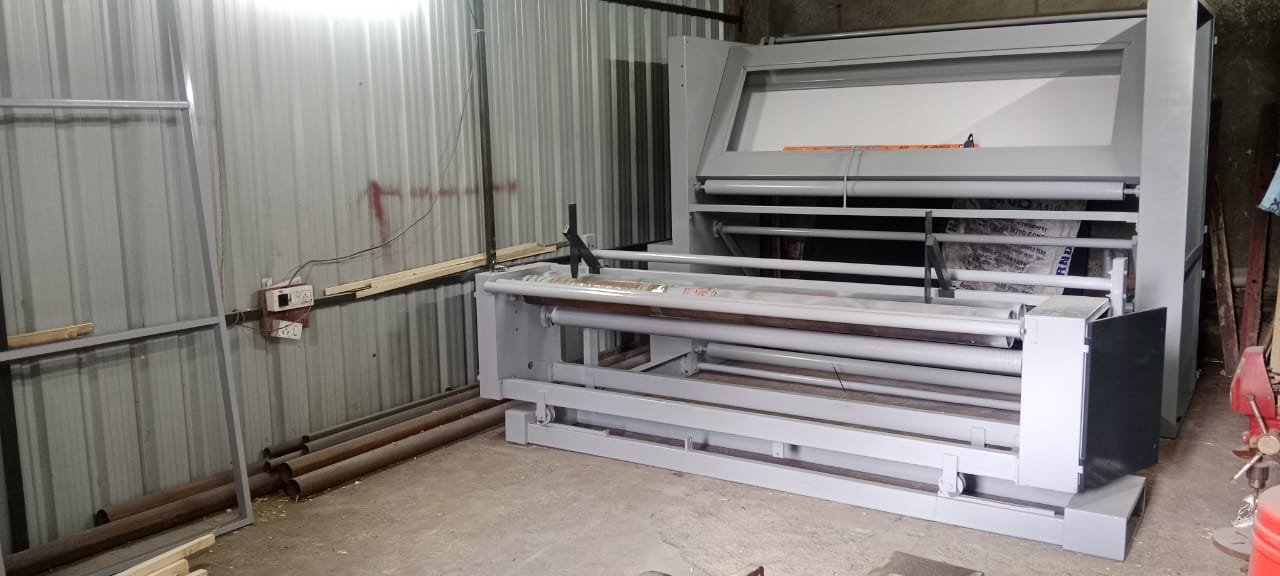

Cloth Roll Stretch Wrapping Machine

Application: For wrapping cloth rolls during transportation in textile mills.

Overview:

An efficient and economical solution for packing various rolled materials such as denim, curtain cloth, carpets, foam sheets, upholstery, fabrics, film, and paper. Provides durable, dust-proof, and moisture-resistant wrapping.

Key Features:

Suitable for a wide range of roll materials

Significant savings over shrink packing or gunny bags

Reduces labor, time, and energy consumption

Variable overlap, stretch percentage, end reinforcement, and roller speed

Over 90% energy saving compared to shrink wrapping

Technical Specifications:

Capacity: 30–40 rolls/hour

Max Roll Weight: 400 kg

Roll Diameter: Up to 600 mm

Roll Width: 1800 mm to 400 mm

Turntable Height: 350 mm (above ground level)

Turntable Speed: 50 meters/min

Installed Power: 1.1 kW

Power Supply: 220V, Single Phase, 50 Hz

Ideal for: Textile mills, exporters, packaging units, and logistics centers.

For pricing and inquiries, contact us today.
