TP- SERIES - TFO Twisters for 2&3 Ply Thread Manufacture.

Verified

By V***
More Details
Reference Id	SPI/432
Price	PRICE ON REQUEST
Category	Spinning
Subcategory	Twisters Machine, Two for One (TFO)
Location	Surat, Gujarat, India
Brand Name and Model	Weavetech - TP-68, TP-66, TP-33
Condition	New
Minimum Order Quantity	1 Set
Application	Spinning
No of Spindles

Description :

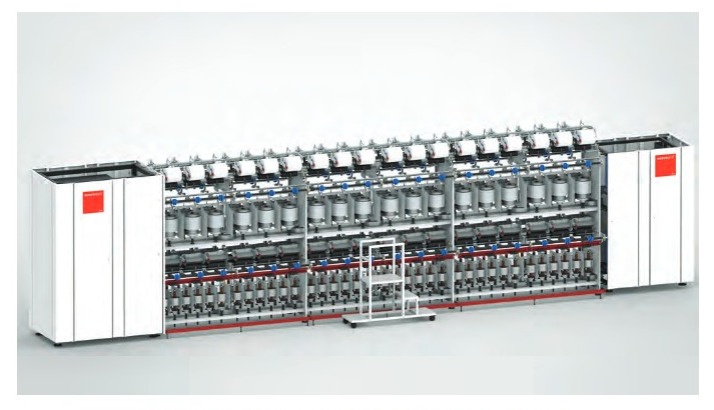

Weavetech's TP- SERIES - TFO Twisters for 2&3 Ply Thread Mfg. (Ply & Cable)
(Upto 2.0 Kg Knotless).

MARKET SEGMENT :-
For 2/3 Ply Filament Threads used in Embroidery, Sewing, Twines,
Nets etc.

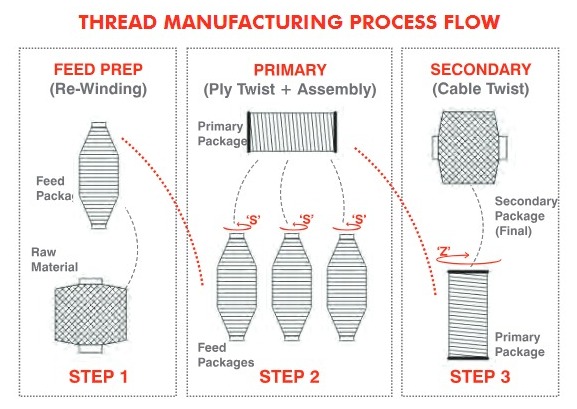

• APPLICATION - High Speed DUAL-Stage Process with TFO Twisting for
"PRIMARY" Single Ply & TFO Twisting for "SECONDARY" Combined plys Output
on a Tube.

• TAKEUP SPEED - Up to 90 mtrs/min (Mech).

• SPINDLE SPEED - PRIMARY: 14000 RPM (Mech), SECONDARY: 12000 RPM
(Mech).

• YARN TYPE - Polyester/Nylon/PP/Rayon.

• FEED (KNOTLESS) - Max. 2x1200 gms / 3x800 gms.

• TAKEUP (KNOTLESS) - Max. 2400 gms.

• TAKEUP TYPE - 170 to 230mm Parellale Cheese - Hard or Soft Package.

• YARN RANGE - PRIMARY: 50-600 dn, SECONDARY: 150-1800 dn.

• TWISTS RANGE - 120 to 1200 TPM.

• SPINDLE RANGE - PRIMARY: 70mm, 90mm, 110mm, SECONDARY: 110mm, 135mm, 145mm.

• TRAVERSE TYPE - Central BiConical Cheese, Edge Breaking & Anti-Patterning.
